Plastic fabrication transforms raw plastic materials into useful products and components. Depending on the material, design, production volume, and budget, manufacturers can choose from methods ranging from simple cutting and bending to highly automated molding processes.
Understanding how each method works—and where it performs best—can help designers and businesses select the right approach. Here are 12 common plastic fabrication methods and when they are used.
1. Injection Molding
Injection molding produces parts by heating plastic pellets until they melt, then injecting the material into a closed mold under pressure. The plastic cools and hardens into the mold’s shape, after which the finished part is ejected.
This method is especially useful for producing large quantities of identical parts. Although the mold can be expensive to design and manufacture, that cost is spread across thousands or millions of components.
Common uses: Bottle caps, appliance housings, toys, automotive components, containers, and electronic enclosures.
Best for: High-volume production of detailed, consistent parts.
2. Extrusion
In extrusion, melted plastic is pushed through a shaped opening called a die. The plastic emerges as a continuous profile, which is cooled and cut to the required length.
Because the process creates a continuous shape, it is ideal for products with a consistent cross-section. Dies are generally less complex than injection molds, making extrusion a practical option for long or continuous products.
Common uses: Pipes, tubing, window frames, plastic channels, weather stripping, and sheets.
Best for: Long products with a uniform profile.
3. Blow Molding
Blow molding forms hollow plastic products by inflating heated plastic inside a mold. Air pressure pushes the plastic outward until it takes the shape of the mold.
The process is widely used for containers because it can create lightweight, seamless hollow parts efficiently. Different versions of blow molding are suited to different materials, product shapes, and production requirements.
Common uses: Water bottles, detergent containers, fuel tanks, drums, and hollow toys.
Best for: Hollow products, especially containers made in large quantities.

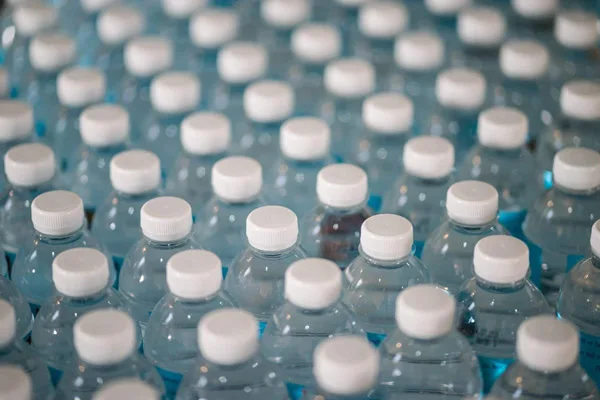

Plastic bottles
4. Thermoforming
Thermoforming begins with a plastic sheet that is heated until it becomes soft and flexible. The sheet is then shaped over or into a mold using vacuum pressure, air pressure, or mechanical force. After cooling, excess material is trimmed away.
Tooling is often less expensive than injection-molding tooling, so thermoforming can be a good choice for large parts or shorter production runs. The process may produce more material waste because the unused sheet is trimmed off.
Common uses: Food trays, packaging, appliance liners, protective covers, and vehicle interior panels.
Best for: Large, relatively lightweight parts and packaging.
5. Compression Molding
Compression molding uses heat and pressure to shape plastic material inside a mold. A measured amount of material is placed in the mold, which is then closed. The material flows into the cavity and hardens as it is heated and compressed.
This method is often used with thermosetting plastics and reinforced materials. It can produce strong, durable parts, including components with substantial thickness.
Common uses: Electrical housings, automotive parts, handles, appliance components, and composite panels.
Best for: Strong parts made from thermosets or reinforced plastics.
6. Rotational Molding
Rotational molding, also called rotomolding, creates hollow parts by heating plastic powder inside a mold that rotates on multiple axes. The powder melts and coats the inside of the mold, forming a hollow shape as it cools.
The process generally uses relatively low pressure and can make large, seamless products. It is often economical for medium-sized production runs, though cycle times may be longer than those of some other molding methods.
Common uses: Storage tanks, kayaks, playground equipment, bins, and large containers.
Best for: Large hollow products with relatively uniform walls.

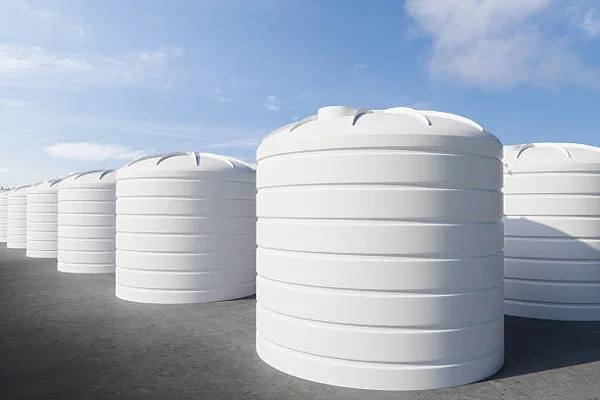

Storage tanks
7. CNC Machining
Computer numerical control (CNC) machining removes material from a solid plastic block, sheet, or rod using computer-controlled cutting tools. It can produce precise shapes without requiring a custom mold.
CNC machining is useful when accuracy matters or when only a small number of parts are needed. It can also be used to make prototypes and components from engineering plastics. However, machining removes material, so it may create more waste than forming processes.
Common uses: Precision components, prototypes, fixtures, gears, medical parts, and custom enclosures.
Best for: Low-volume production and parts that need tight tolerances.
8. Laser Cutting
Laser cutting uses a focused beam of light to cut plastic sheets into precise shapes. A computer-controlled system follows a digital design, allowing intricate outlines and repeatable results.
The method is fast and convenient for flat parts, but not every plastic is suitable for laser processing. Some materials can release hazardous fumes or melt in ways that affect the cut edge, so material compatibility and proper ventilation are essential.
Common uses: Signs, panels, decorative parts, templates, and flat prototypes.
Best for: Precise two-dimensional parts cut from sheet plastic.
9. Die Cutting
Die cutting uses a shaped blade or cutting tool to punch parts from plastic sheets, films, or foams. The die is pressed into the material to create a repeatable outline.
Once the die is made, the process can be very fast, making it useful for producing many identical flat parts. It is less flexible than digital cutting when designs change frequently, since a new or modified die may be required.
Common uses: Gaskets, labels, seals, packaging inserts, foam pads, and protective films.
Best for: High-volume production of simple, flat shapes.
Adhesive gaskets main
10. Plastic Welding
Plastic welding joins compatible plastic parts by softening the material at the joint and pressing the pieces together. Heat may come from hot air, a heated tool, friction, or ultrasonic vibration, depending on the process.
A successful weld depends on using compatible materials and preparing the joint properly. Plastic welding can create strong connections without screws or adhesives, particularly in products that need to resist leaks.
Common uses: Tanks, pipes, automotive components, medical devices, and plastic enclosures.
Best for: Joining compatible plastic parts, especially when a sealed joint is needed.
11. 3D Printing
3D printing builds a plastic part layer by layer from a digital model. Several technologies are available, including fused filament fabrication (FFF), stereolithography (SLA), and selective laser sintering (SLS). Each offers different combinations of surface finish, strength, detail, and material choice.
Because it does not usually require conventional molds or dies, 3D printing is well suited to prototypes, custom parts, and complex designs. It can be slower or more expensive per part than molding when production quantities are high.
Common uses: Prototypes, custom brackets, product models, replacement parts, and small production runs.
Best for: One-off parts, design testing, and complex or customized shapes.
12. Plastic Bending
Plastic bending shapes a plastic sheet by heating a specific area until it softens, then forming it around a straight edge or into a desired angle. The part is held in place while it cools and becomes rigid again.
This method is relatively simple and cost-effective for making angular parts from sheet material. It works best for designs with straight bends rather than highly complex curves.
Common uses: Display stands, machine guards, signs, covers, and simple enclosures.
Best for: Making angled components from flat plastic sheets.

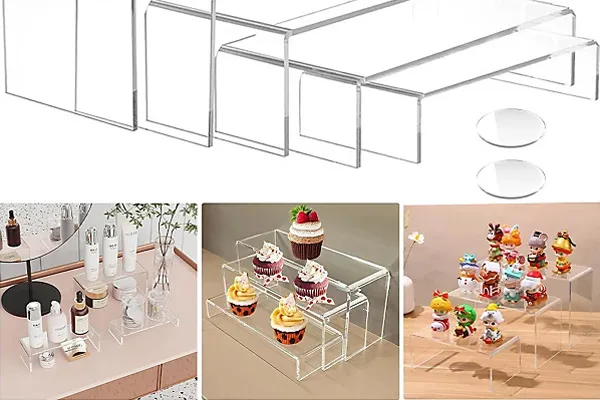

Display stands
How to Choose the Right Fabrication Method
The best method depends on more than the shape of the part. Consider these factors before making a decision:
- Production volume: Molding methods often suit large runs, while machining and 3D printing are useful for smaller quantities.
- Part geometry: Hollow containers, long profiles, flat panels, and detailed components each call for different processes.
- Material: Not every plastic works with every fabrication method. Material strength, flexibility, heat resistance, and chemical compatibility all matter.
- Tooling budget: Injection molds and dies can require significant upfront investment. CNC machining and 3D printing may be more affordable for early prototypes.
- Precision and finish: CNC machining, injection molding, and some 3D-printing technologies can meet different precision and surface-quality needs.
- Part size: Rotational molding and thermoforming can be suitable for large components, while other processes may be better for smaller parts.
- Assembly requirements: If a product consists of multiple pieces, consider whether the parts will be welded, fastened, bonded, or assembled another way.
Conclusion
Plastic fabrication includes a wide range of methods, each designed for particular materials, shapes, and production needs. Injection molding is often a strong choice for high-volume parts, while CNC machining and 3D printing offer flexibility for prototypes and low-volume work. Extrusion creates continuous profiles, thermoforming shapes sheets, and rotational molding produces large hollow parts.
By comparing the design, material, required quantity, budget, and performance needs, manufacturers can choose a process that balances quality, cost, and production efficiency.
