The Architect’s Blueprint: A Comprehensive Guide to Choosing the Best Materials in Plastic Injection Molding

In the world of product design and manufacturing, plastic injection molding stands as a titan. It’s the process behind countless items we use daily, from the tiny gears in a watch to the vast dashboard of a car. Yet, for all the sophistication of modern molding machines and precision tooling, the success of any project often hinges on a decision made long before the first mold is cut: the selection of the right plastic material.

Choosing a material is not merely a technical specification; it’s an act of architectural foresight. It involves balancing a symphony of factors—function, cost, aesthetics, and manufacturability. Selecting the wrong material can lead to catastrophic product failure, spiraling costs, and endless production headaches. Selecting the right one lays the foundation for a successful, durable, and profitable product.

This guide will serve as your blueprint, walking you through the critical steps and considerations for choosing the best material for your next injection molding project.

Phase 1: Define the Problem – The 5 Fundamental Questions

Before even looking at a list of materials, you must have an intimate understanding of what the part needs to do. Start by answering these five questions in detail.

1. What is the Part’s Primary Function and Application?

This is the most critical question. Is it a structural component bearing a load? A disposable cosmetic cover? A medical device that will be sterilized? A gear that must withstand constant friction? The application dictates the priority of material properties. A “good” material for a garden chair is vastly different from a “good” material for a surgical implant.

2. What Mechanical Stresses Will It Endure?

Consider the forces the part will face throughout its lifecycle.

Load:Will it be under tension, compression, impact, or constant fatigue (flexing)?
Strength & Stiffness:Does it need high tensile strength to resist pulling apart? Does it need high flexural modulus to resist bending? Materials like Nylon (PA) and Polycarbonate (PC) are known for their strength and toughness.
Impact Resistance:Will the part be dropped or subjected to sudden shocks? ABS and Polycarbonate are excellent choices for impact resistance.

3. What Environmental Conditions Will It Face?

Plastics are not inert; they interact with their environment.

Temperature:What is the maximum and minimum operating temperature? Will it be exposed to heat cycles? Materials like PEEK and Ultem (PEI) can withstand extremely high temperatures, while standard plastics like ABS will warp or degrade.
Chemicals & Solvents:Will the part come into contact with oils, fuels, acids, bases, or cleaning solvents? Materials like Polypropylene (PP) and PTFE (Teflon) have excellent chemical resistance.
UV Exposure & Outdoor Use:Will the part be used outdoors? Sunlight can degrade many plastics, causing embrittlement and color fading. ASA or UV-stabilized grades of ABS and Polycarbonate are better suited for outdoor applications.
Moisture & Humidity:Some plastics, like Nylon, are hygroscopic—they absorb moisture from the air, which can affect their dimensions and mechanical properties. This must be accounted for in both storage and processing.

4. What Are the Aesthetic and Regulatory Requirements?

Appearance:Does the part need to be transparent (like Polycarbonate or Acrylic), opaque, or a specific color? Does it require a high-gloss finish or a textured, matte surface?
Feel (Tactility):Does it need to feel soft and grippy (often achieved with TPEs – Thermoplastic Elastomers) or hard and rigid?
Regulations:Is the part for a food-contact application (requiring FDA-compliance like certain grades of PP or PET)? Is it for a medical device (requiring USP Class VI or ISO 10993 biocompatibility, often fulfilled by Polycarbonate, Polypropylene, or PEEK)? Is it for a child’s toy (requiring flame retardancy and non-toxicity)?

5. What is the Expected Production Volume and Budget?

Material Cost:This is an obvious factor. Commodity plastics like Polypropylene (PP) and Polyethylene (PE) are inexpensive, while high-performance engineering plastics like PEEK can cost 50-100 times more.
Tooling Longevity:For high-volume production (millions of parts), you need a material that is easy to process and won’t degrade the mold. Abrasive materials (like those with glass fillers) or corrosive ones (like PVC) can wear down expensive molds faster, necessitating more durable (and costly) tool steel.

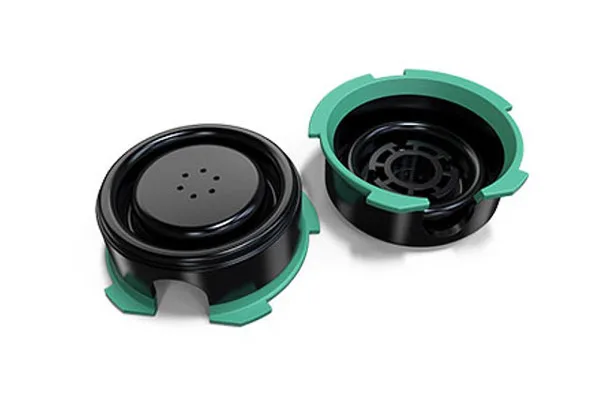

PP

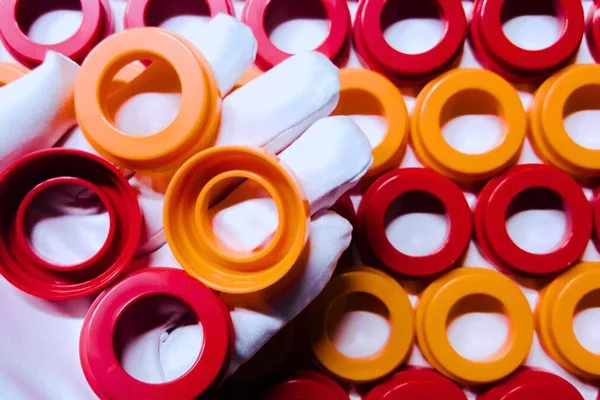

PE

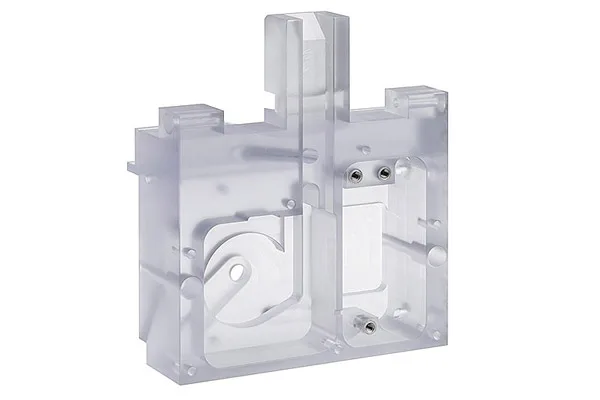

PC

Phase 2: Explore the Material Universe – A Tour of Common Choices

With your requirements defined, you can now explore the vast landscape of thermoplastic materials. Here are some of the most common families:

The Commodity Plastics (Low Cost, High Volume)

Polypropylene (PP):The workhorse. Excellent chemical resistance, good fatigue resistance (great for living hinges), and low cost. Used for food containers, automotive parts, and consumer products.
Polyethylene (PE):Comes in various densities (HDPE, LDPE). Known for its toughness, chemical resistance, and low friction. Used for bottles, buckets, and grocery bags.
Polystyrene (PS):Inexpensive and rigid, but brittle. Often used for disposable cutlery, CD cases, and foam insulation (EPS).

The Engineering Plastics (Balance of Performance and Cost)

Acrylonitrile Butadiene Styrene (ABS):A fantastic all-rounder. Good impact strength, rigidity, and surface finish. Easy to mold and can be easily painted or electroplated. Used for LEGO bricks, automotive interiors, and electronic housings.
Polycarbonate (PC):Known for exceptional impact strength and clarity. It’s a go-to for transparent, tough applications like safety glasses, bullet-resistant “glass,” and electronic components. Its main weakness is poor scratch resistance and susceptibility to UV degradation if not stabilized.
Nylon (Polyamide, PA):A family of materials prized for their strength, toughness, abrasion resistance, and temperature resistance. Often reinforced with glass fibers. Hygroscopic. Used for gears, bearings, and automotive under-the-hood parts.

The High-Performance Plastics (For Demanding Environments)

PEEK (Polyether Ether Ketone):The king of high-performance thermoplastics. Exceptional strength, chemical resistance, and can operate continuously at very high temperatures. Extremely expensive. Used in aerospace, medical implants, and semiconductor manufacturing.
Ultem (PEI):Offers high strength, flame resistance, and high-temperature stability. A step down in cost and performance from PEEK but still premium. Common in medical and aerospace applications.
PPS (Polyphenylene Sulfide):Excellent chemical resistance, dimensional stability, and inherently flame retardant. Used in harsh environments like pump parts and electrical components.

The Flexible & Specialized Plastics

Thermoplastic Elastomers (TPE/TPU):These materials bridge the gap between rubber and plastic. They are flexible, durable, and can be injection molded. Used for grips, seals, gaskets, and soft-touch surfaces.
Acetal (POM):Known for its high stiffness, low friction, and excellent dimensional stability. Often called “the engineer’s plastic” for making precision parts like gears and bearings.
Acrylic (PMMA):Offers superior clarity and gloss compared to Polycarbonate, but is much more brittle. The go-to material for lenses, light guides, and aquariums.

Phase 3: The Crucible of Manufacturing – Considering the Process

A material’s datasheet properties are measured under ideal lab conditions. How it behaves in a real-world mold is another story.

Shrinkage:All plastics shrink as they cool. The rate of shrinkage (e.g., 0.5-0.7% for ABS) must be accurately predicted and designed into the mold. Crystalline materials (like PP and Nylon) shrink more than amorphous materials (like ABS and PC).
Flowability (Melt Flow Index – MFI):Can the material flow easily into long, thin sections of the mold? A higher MFI indicates better flow. Thin-walled parts like phone cases require materials with a high MFI.
Warpage:Uneven cooling can cause parts to warp. This is influenced by the material’s shrinkage characteristics and the part’s design. Ribs and uniform wall thicknesses are critical to control warpage.
Ease of Processing:Some materials are more forgiving than others. ABS is generally easy to process, while something like PVC requires careful temperature control to avoid degradation.

Phase 4: The Final Synthesis – Making the Decision

You now have all the pieces. The final step is synthesis.

Create a Shortlist:Based on your Phase 1 requirements, narrow the field down to 2-4 candidate materials.
Consult with Experts:This is invaluable. Talk to your injection molder and material suppliers. They have practical, hands-on experience and can warn you of potential pitfalls (e.g., “Material X is great, but it’s notorious for sticking in molds if not designed correctly”).
Prototype and Test:Whenever possible, create functional prototypes using the shortlisted materials. There is no substitute for real-world testing. Put the prototypes through their paces—apply stress, expose them to chemicals, test them in the actual environment.
Perform a Cost-Benefit Analysis:Weigh the total cost of the material (including any special handling, like drying Nylon) against the performance benefits. Sometimes a slightly more expensive material can save money by allowing for a thinner, lighter part or reducing failure rates.

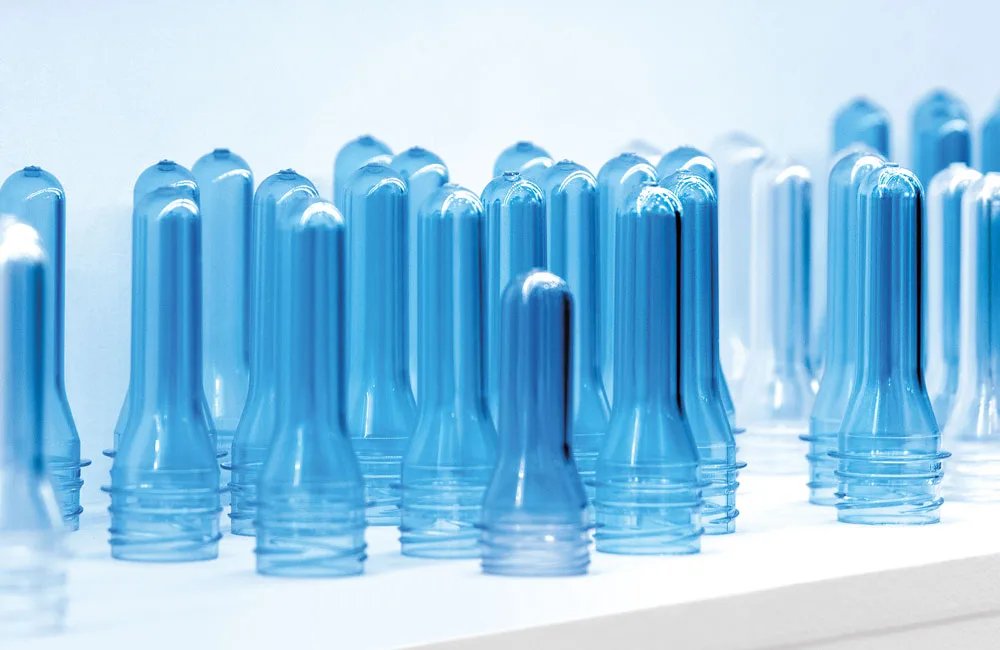

PET

Conclusion: An Iterative, Informed Partnership

Choosing the best material for plastic injection molding is not a one-time event but an iterative process of inquiry, exploration, and validation. It requires a deep partnership between the product designer, the engineer, and the injection molder.

By meticulously defining your requirements, understanding the strengths and weaknesses of the material families, and respecting the realities of the manufacturing process, you move from guessing to informed decision-making. The right material choice is the invisible hero of a great product—it ensures that your design not only comes to life but thrives in the real world, meeting its functional goals and delighting its users for years to come.
