3D Printing Design Guide: Strategies for Achieving Better Outcomes
3D printing, also known as additive manufacturing, has revolutionized product development, prototyping and even small-scale production across industries.
This guide explores key strategies and technical insights to optimize 3D printing outcomes, ensuring high quality, functional parts and efficient production. As technology matures and expands into new applications, from biomedical implants to aerospace components and consumer goods, the importance of design optimization becomes increasingly critical for achieving consistent, repeatable and reliable results.

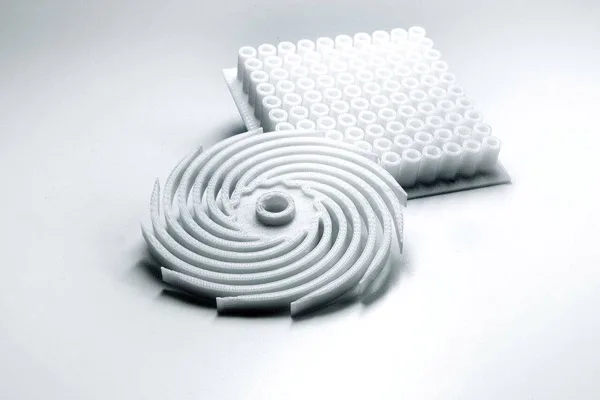

FDM prototyping

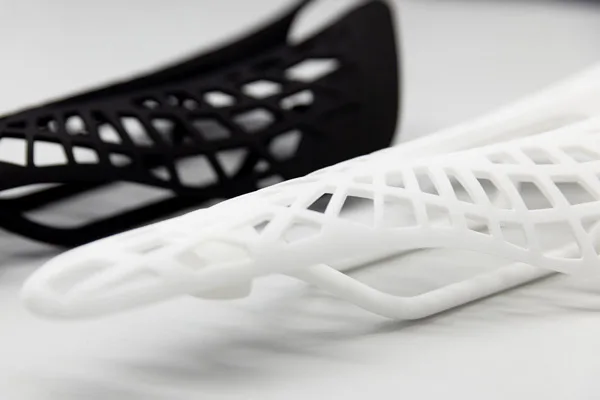

SLS parts

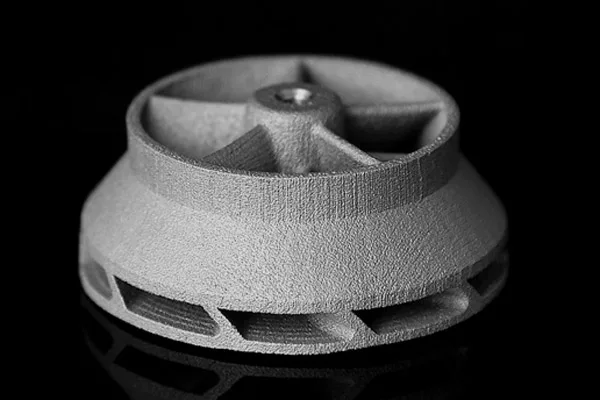

Sintered part
Understanding the 3D Printing Process and Technologies
Fused Deposition Modeling (FDM):
Stereolithography (SLA):
Selective Laser Sintering (SLS):
Uses a laser to sinter powdered materials like nylon and polyamide, enabling strong, complex, and functional parts without requiring dedicated support structures, as the unsintered powder provides natural support. SLS produces durable components with superior mechanical properties that are suitable for end-use components, hinges, snap-ons and complex assemblies. The powder-based nature allows nesting of multiple parts within a building volume, maximizing productivity.
PolyJet:
Jets photopolymer droplets that are cured instantly by UV light, offering high resolution and multi-material capabilities within a single print. PolyJet can produce parts with varying values of Shore hardness, color, and transparency, making it ideal for over-molding simulations, medical models, and realistic prototypes with texture mapping. The technique achieves extremely thin layers down to 16 microns in thickness.
Direct Metal Laser Sintering (DMLS):
Produces fully dense metal parts with complex geometries using laser energy to fuse metal powder particles. Ideal for aerospace, medical and industrial applications requiring high strength, heat resistance and biocompatibility. Materials include stainless steel, titanium, aluminum, cobalt-chrome, and Inconel. Design considerations include thermal stress management, structural requirements to support anchoring against warping, and powder removal from internal channels.
Binder Jetting:
Deposits liquid binding agent onto powder beds to create parts that are subsequently sintered or infiltrated. This technology enables high volume production, full color parts and large format printing without thermal distortion, although parts require post-processing for densification.
Material Jetting:
Deposits droplets of build material similarly to 2D inkjet printing, offering exceptional surface finish and accuracy suitable for detailed visual prototypes and tooling applications.
Understanding the specific strengths, limitations, and design requirements of each method guides informed design choices and helps select the most appropriate technology for your application requirements.
Strategic Design Principles for Better 3D Printing Outcomes
1. Optimize Geometry for Additive Manufacturing
Minimize Overhangs and Unsupported Features: Use design for additive manufacturing (DfAM) principles to reduce the need for support structures, which can increase post-processing time and affect surface quality.
Incorporate Built-in Supports: When supports are necessary, design features like breakaway support interfaces to facilitate easy removal.
Use Self-Supporting Angles: Design angles typically between 30° and 45° to ensure stability without excessive supports.
Manage Bridging Effectively: When designing horizontal spans, keep bridge lengths under 5-10mm depending on material and layer height, or incorporate supporting geometry to prevent sagging. Design bridges with slightly arched profiles to improve stability during printing.
Avoid Sharp Internal Corners: Sharp corners create stress concentrations and can lead to warping or cracking. Incorporate a minimum 2-3 mm radius for the fillets and radii where possible to improve strength and printability.
2. Embrace Complex Geometries and Internal Features
Internal Channels and Lattice Structures: Exploit the freedom of 3D printing to include internal cooling channels, lightweight lattice structures, or intricate geometries impossible with subtractive manufacturing.
Design for Assembly: Incorporate features that enable multi-part assembly or reduce the number of parts by integrating functions into a single print.
Incorporate Living Hinges and Snap-Fits: Design flexible features directly into rigid components using materials with appropriate flexibility. Living hinges require careful consideration of hinge thickness, radius, and material selection to achieve desired flexibility without premature failure.
Create Conformal Features: Design features that follow natural contours rather than being constrained to planar surfaces. Conformal cooling channels in injection molds, for example, can reduce cycle times by 30-50% compared to conventional straight-drilled channels.
3. Material Selection and Compatibility
Match Material Properties to Application: Choose materials based on strength, flexibility, chemical resistance, biocompatibility, and sterilization needs.
Consider Material Shrinkage and Tolerances: Account for shrinkage rates and layer resolution when designing for precise fits or functional parts.
Understand Anisotropic Behavior: Recognize that printed parts exhibit different mechanical properties in X, Y, and Z orientations due to layer-by-layer construction. Designs are designed to orient critical features and load bearing surfaces to leverage stronger orientations and minimize reliance on interlayer adhesion where high stresses occur.
Evaluate Environmental Resistance: Consider UV stability, moisture absorption, chemical resistance, and temperature limits when selecting materials for specific applications. Nylon absorbs moisture, affecting dimensional stability, while some photopolymers degrade under prolonged UV exposure.
4. Tolerance and Wall Thickness Considerations
Set Appropriate Tolerances: Adjust design dimensions to compensate for layer resolution and material behavior.
Optimize Wall Thickness: Use minimum wall thicknesses supported by the chosen process (usually 1-2 mm) to balance strength and material usage.
Design for Gradual Transitions: Avoid sudden changes in wall thickness that can cause differential cooling, residual stress, and warping. Incorporate gradual transitions between thick and thin sections to maintain dimensional stability and structural integrity.
Consider Feature Resolution: Design features such as text, fine details, and small holes with appropriate dimensions for your chosen process. For FDM, text should typically be at least 1.5mm tall and 0.8mm wide, while resin processes can achieve much finer details down to 0.2mm.
5. Surface Finish and Post-Processing
Design for Post-Processing: Plan for sanding, polishing, or chemical smoothing to improve surface quality.
Use Textures Strategically: Incorporate surface textures or features that reduce finishing work or improve grip and aesthetics.
Plan for Support Removal: Design parts with consideration for how supports will be removed. Ensure access to the support structure, avoid trapped supports in the internal cavities, and consider designing breakpoints or using soluble support materials for complex geometries.
Consider Surface Treatments: Different post-processing techniques offer various benefits. Vapor smoothing works well for ABS and some nylons, epoxy coatings improve strength and appearance, and dyeing can add color to printed parts without significantly affecting dimensions.
Design for Painting and Coating: If the part will be painted or coated, consider adding slight gaps for coating thickness in the critical mating features and designing the surface texture to be suitable for paint adhesion.
6. Build Orientation and Support Strategies
Optimal Part Orientation: Position parts to minimize support material, reduce build time, and improve surface quality on critical features.
Support Structures: Use software tools to generate support structures efficiently, and design parts to make support removal easier.
Manage Thermal Stress: For metal and high-temperature polymer printing, orientation affects residual stress distribution and potential for warping. Orient the parts to minimize tall, thin features that may experience thermal deformation during processing.
Nesting and Packing: For batch production, optimize part arrangement within the build volume to maximize throughput while maintaining quality. Consider part spacing, thermal management, and access to post-processing when nesting multiple parts.
3D printed machine
Cutting-Edge Technological Strategies
Multi-Material Printing: Technologies like PolyJet and MultiJet enable multi-material parts with varying hardness, color, or properties in a single build.
Topology Optimization: Use software to optimize internal structures for weight reduction while maintaining strength, especially in aerospace and medical implants.
Automated Support Generation: AI-driven support design reduces material usage and eases removal.
Hybrid Manufacturing: Combine subtractive and additive processes to achieve complex, high-precision parts with superior surface finishes and tolerances.
Material Innovations: Emerging materials like bio-compatible resins, flexible thermoplastics, and metal composites expand application possibilities.
Economic Considerations and Production Planning
Cost-Per-Part Analysis
Evaluate total cost including material, machine time, post-processing, and quality control when selecting between technologies and design approaches. Consider how design decisions affect each cost component.
Batch vs. Continuous Production
Design for efficient batch production through nesting, part orientation optimization, and minimizing per-part setup time. For higher volumes, consider how design modifications could enable continuous production workflows.
Inventory Digitalization
Design parts for on-demand production rather than physical inventory, reducing warehouse costs, eliminating minimum order quantities, and enabling rapid response to changing requirements.
Quality Assurance Integration
Incorporating inspection features, reference points, or test vouchers into the design facilitates quality verification and process validation throughout production.
Lifecycle Considerations
Design for repairability, upgradeability, or eventual recycling. Consider how parts may be refurbished or remanufactured at the end of life and design the disassembly characteristics accordingly.
Industry-Specific Design Considerations
Aerospace
Prioritize weight reduction, thermal performance, and certification requirements. Complex internal cooling channels, lattice structures, and partial consolidations were designed while meeting stringent quality and traceability standards.
Medical and Dental
Focus on biocompatibility, sterilization compatibility, and patient-specific customization. Design porous structures for osseointegration, patient-matched surgical guides, and anatomical models with appropriate mechanical properties for surgical simulation.
Automotive
balancing volume, material properties and cost.
Consumer Products
Emphasize aesthetics, surface finish, and cost-effectiveness. It is designed for mass customization, rapid iteration, and efficient small-batch production with a focus on brand identity and user experience.
Industrial Tooling
Focus on durability, thermal management, and wear resistance. Design conformable cooling channels, lightweight handling features, and replaceable wear surfaces for jigs, fixtures, and production tooling.

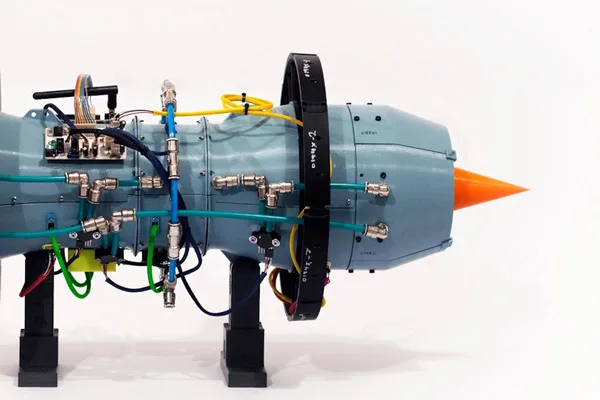

3d printing for aerospace

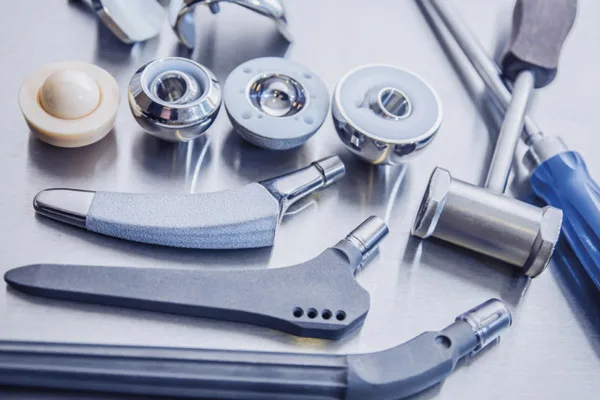

3d printed meidcal devices
Conclusion
Achieving better outcomes in 3D printing relies on thoughtful design, material selection, and leveraging technological advances.
As 3D printing continues to evolve, staying abreast of new materials, hybrid techniques, and computational tools will be key to unlocking its full potential for diverse applications-from rapid prototyping to final production.
