When designing enclosures for 5G equipment, the choice of material and manufacturing method is crucial in meeting performance and durability standards. Pressure die casting provides a precise and cost-effective method for producing robust, lightweight metal enclosures that shield sensitive electronics from interference.
You’ll find pressure die casting ideal for 5G enclosures due to its ability to create complex shapes with tight tolerances and excellent surface finish. This process ensures your enclosures can withstand environmental stresses while maintaining efficient heat dissipation.
By using pressure die casting, your 5G enclosures achieve consistent quality and reliability, which are essential in high-frequency applications. This manufacturing method supports mass production without sacrificing structural integrity or detail.
Fundamentals of Die Casting for 5G Enclosures
Creating durable and precise enclosures for 5G equipment demands specific manufacturing methods and materials. Thickness, heat dissipation, and electromagnetic interference (EMI) shielding are critical factors you must consider when working with die casting for telecom housing.
Key Requirements for 5G Equipment Enclosures
Your 5G enclosures must provide robust protection against environmental factors such as moisture, dust, and temperature fluctuations. Accurate dimensional tolerances are essential to ensure proper fitting of sensitive electronic components.
Mechanical strength is crucial for withstanding vibrations and physical impacts during installation and operation. Additionally, enclosures must minimize electromagnetic interference to maintain signal integrity. You should also consider ease of assembly and integration with other telecom housing components to optimize production efficiency.
Pressure Die Casting in 5G Telecom Housing
Pressure die casting offers high-volume production with excellent surface finish and dimensional accuracy, fitting the stringent requirements of 5G enclosures. The process injects molten metal under high pressure into precision molds, ensuring consistency and detail in features such as mounting points and ventilation slots.
This method also supports thin wall sections, reducing enclosure weight without sacrificing rigidity. You can achieve tight tolerances, which are crucial for aligning antenna ports and electronic interfaces. Pressure die casting enhances manufacturing speed and lowers labor costs, making it a preferred technique in 5G telecom housing manufacturing.

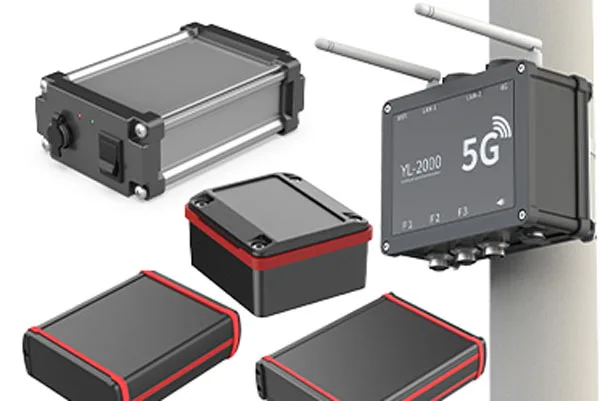

Aluminium 5G enclosures
Material Selection: Aluminum for EMI Protection
Aluminum is the material of choice for your 5G enclosures due to its lightweight nature and substantial electromagnetic interference (EMI) shielding capabilities. Its excellent thermal conductivity helps dissipate heat generated by active 5G components, preventing overheating and extending device lifespan.
Aluminum die casting enables the creation of complex geometries that enhance airflow and improve structural integrity. It also resists corrosion, which is essential for outdoor telecom equipment exposed to harsh environments. Using aluminum die casting for EMI protection ensures that your metal enclosures effectively block interference while maintaining physical durability.
EMI-RF Shielding and Advanced Solutions
Effective EMI-RF shielding is critical when designing 5G enclosures to maintain signal integrity and prevent interference. You need to focus on precise die casting techniques, materials, and methods that optimize electromagnetic compatibility for telecom applications.
EMI Shielding Die Casting Techniques
Die casting for EMI shielding utilizes conductive metals, such as aluminum or zinc, to create enclosures that block electromagnetic interference. The key is achieving uniform wall thickness and smooth surfaces to ensure consistent shielding effectiveness.
You’ll find multi-cavity dies enhance production efficiency while maintaining tight dimensional tolerances. Surface treatments, such as plating or coating, may be applied to improve conductivity and corrosion resistance, thereby further enhancing the shielding performance.
The die casting process enables the creation of complex shapes that incorporate shielding features directly into the enclosure. This eliminates the need for additional shielding inserts and reduces assembly time, which is especially important for compact 5G devices.
High-Pressure Die Casting for Enhanced Performance
High-pressure die casting (HPDC) is preferred for 5G enclosure production due to its speed and precision. The process forces molten metal into a mold under extreme pressure, resulting in dense, wrinkle-free parts with excellent mechanical properties.
HPDC produces repeatable parts with tight tolerances essential for maintaining EMI shielding integrity around sensitive components. Complex geometries, such as ribs and integrated bosses, increase enclosure strength without adding significant weight.
You can optimize HPDC by adjusting parameters such as injection speed, pressure, and mold temperature to balance shielding effectiveness and structural performance. This method supports both prototyping and large-scale manufacturing efficiently.
EMI-RF Shielding Solutions for Telecom Applications
Telecom applications require enclosures that block a wide range of frequencies, from low MHz to several GHz, which is common in 5G networks. Die-cast enclosures with integrated EMI-RF shielding protect internal circuitry from external noise and prevent signal leakage.
Typical solutions include gasketed seams and conductive coatings inside the enclosure to address potential EMI hotspots. You must also consider vented designs that allow heat dissipation while maintaining shielding through fine metal meshes or honeycomb structures.
Selecting the right alloy enhances both shielding and thermal management, a critical factor for 5G base stations operating continuously under load. Custom die-cast designs can incorporate antenna isolation and grounding features tailored for telecom environments.
