In the world of precision manufacturing, certain materials and geometries defy conventional machining. When a workpiece is too hard, too fragile, or features internal corners sharper than any end mill can cut, traditional subtractive methods reach their limits. This is where Electric Discharge Machining (EDM)—sometimes referred to as spark erosion, spark machining, or die sinking—becomes indispensable.
EDM is a non-traditional machining process that uses controlled electrical discharges (sparks) to remove material from a conductive workpiece. Unlike cutting or grinding, there is no physical contact between the tool and the part, which eliminates mechanical stresses and allows machinists to create features that would be impossible with conventional methods.
This guide explores the fundamentals of EDM, the different types of machines, key parameters, materials, applications, and the advantages and limitations you need to know before integrating this technology into your manufacturing workflow.
What Is Electric Discharge Machining?
Electric Discharge Machining, commonly known as EDM, is a non-traditional machining process that uses electrical discharges (sparks) to remove material from a conductive workpiece. Unlike traditional cutting tools that physically contact and shear material away, EDM employs controlled electrical sparks to erode the material gradually.
Fundamental Principle: EDM operates on the principle of thermoelectric erosion. When a high-voltage electric spark jumps across a small gap between an electrode (tool) and the workpiece, intense heat (up to 8,000°C) vaporizes and melts tiny portions of the workpiece. With precise control, this process allows for intricate and highly accurate shapes to be machined.

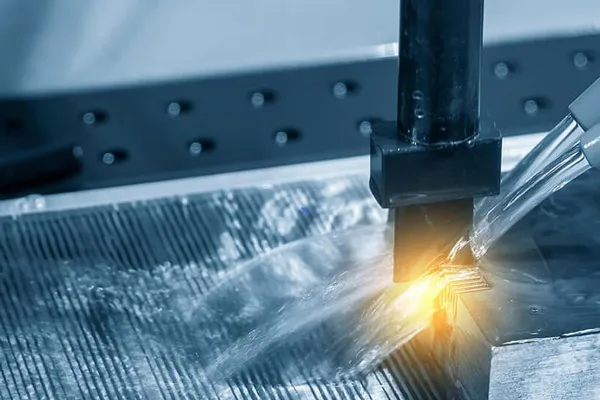

Electrical discharge machining
Types of EDM
EDM is not a single process but a family of technologies, each suited to different applications. The three main types are:
Sinker EDM (Ram EDM, Die Sinking)
In sinker EDM, a custom-shaped electrode (typically graphite or copper) is machined to the inverse of the desired cavity. The electrode is slowly lowered into the workpiece as sparks erode the material. The result is a cavity that mirrors the shape of the electrode, complete with sharp internal corners and fine details.
- Applications: Injection molds, die casting dies, forging dies, complex cavities, and blind holes.
- Key Considerations: Electrode wear is a major factor; multiple electrodes may be required—a roughing electrode for bulk removal and finishing electrodes for fine detail. The process can be slower than wire EDM but offers unmatched geometric flexibility.
Wire EDM (Wire-Cut EDM)
Wire EDM uses a thin, continuously moving metal wire (typically brass or coated copper, 0.02–0.3 mm diameter) as the electrode. The wire never touches the workpiece; it is guided by precision CNC-controlled diamond guides. The dielectric fluid—almost always deionized water—flushes away eroded particles.
Wire EDM excels at cutting through conductive materials to produce precise contours, including tapered shapes. It is essentially a high-precision wire saw that can cut hardened steel, carbide, and exotic alloys with tolerances in the micron range.
- Applications: Punch and die sets, extrusion dies, gears, precision components, and prototypes requiring complex 2D or tapered geometries.
- Key Considerations: The wire is consumed during the process and is continuously fed from a spool. Modern wire EDM machines can achieve surface finishes down to Ra 0.1 µm and can cut material up to several hundred millimeters thick.
Hole Drilling EDM (Fast Hole EDM)
Hole drilling EDM is a specialized variant designed to produce small, deep holes with high aspect ratios. A rotating tubular electrode (usually brass or copper) delivers high-pressure dielectric fluid through the center to flush debris. This process is often the starting point for wire EDM (to create a thread hole) or for drilling cooling holes in turbine blades.
- Applications: Cooling holes in turbine blades, fuel injector nozzles, wire EDM start holes, and holes in hard materials that would break conventional drills.
- Key Considerations: Hole diameters can range from 0.1 mm to 6 mm, with depth-to-diameter ratios exceeding 100:1. It is exceptionally fast compared to conventional drilling in superalloys.
Key Components of an EDM System
Understanding the major components helps demystify the process and highlights why precision control is paramount.
Power Supply (Generator): The heart of the EDM machine. Modern generators deliver pulses with precisely controlled on-time, off-time, and peak current. These parameters dictate material removal rate, surface finish, and electrode wear.
Dielectric System: The fluid serves multiple roles: insulator, coolant, and debris flusher. Filtration systems remove microscopic particles to maintain consistent machining conditions.
Servo Control System: A high-speed servo mechanism maintains the optimal spark gap. It must react in milliseconds to avoid short circuits or excessive gaps.
CNC Control: Most modern EDM machines are computer numerically controlled, allowing complex 3D electrode movements or multi-axis wire path control.
EDM machining
Materials That Can Be Machined with EDM
Common EDM materials include:
| Material | Examples | Key Characteristics |
| Tool Steels | A2, D2, S7, H13 | Ideal for EDM, especially in mold and die applications. Can be machined in both hardened and unhardened states. |
| Carbides | Tungsten carbide (WC), other cemented carbides | Routinely machined with EDM; often faster than grinding. |
| Superalloys | Inconel, Hastelloy, Monel, titanium alloys | Common in aerospace and medical implants; readily machined despite their high heat resistance. |
| Conductive Ceramics | Zirconium oxide (with conductive additives) | Can be EDM’d when modified to be electrically conductive. |
| Exotic Metals | Copper, brass, aluminum, precious metals | Processable, but some (e.g., aluminum) require careful parameter selection due to low melting points. |
Advantages of EDM
Why choose EDM over milling, turning, or grinding? The unique benefits include:
No Mechanical Forces: Since there is no contact, delicate workpieces can be machined without distortion or residual stresses.
Machines Hardened Materials: EDM can cut fully hardened steel as easily as annealed material, eliminating the risk of heat-treat distortion after roughing.
Complex Geometries: Internal sharp corners, deep ribs, narrow slots, and intricate 3D cavities that would require multiple setups or special cutters are easily achieved.
Excellent Surface Finishes: With appropriate finishing parameters, EDM can achieve mirror-like finishes that reduce or eliminate secondary polishing.
High Precision: Tolerances of ±0.002 mm are achievable in wire EDM and sinker EDM, making it essential for micro-machining and high-precision tooling.
Limitations and Challenges
Conductive Materials Only: Non-conductive materials cannot be machined directly.
Slow Material Removal Rate:
Compared to conventional milling or turning, EDM is relatively slow. Roughing with EDM is much less efficient than roughing with a carbide end mill. This is why EDM is often reserved for finishing or for features that cannot be machined otherwise.
Electrode Wear (Sinker EDM):
Electrodes erode during machining, which can affect accuracy. Multiple electrodes or sophisticated compensation strategies are required for high-precision work.
Heat-Affected Zone (HAZ):
Although minimal compared to laser or plasma cutting, EDM creates a recast layer on the surface. In critical applications (aerospace, medical), this layer may need to be removed by chemical or mechanical means.
Dielectric Management:
The fluid requires filtration, temperature control, and proper disposal. Deionized water systems in wire EDM also need resin beds to maintain water purity.
Cost:
High-precision EDM machines are significant capital investments, and the process requires skilled operators and programmers.
Applications Across Industries
EDM’s unique capabilities make it indispensable in sectors where precision, exotic materials, and complex geometries are the norm.
Tool and Die Making
This remains the largest application area. EDM is used to create injection molds, stamping dies, forging dies, and extrusion dies. The ability to cut hardened steel after heat treatment ensures that mold cavities retain perfect dimensional stability.
Aerospace
Turbine blades and vanes made from Inconel or other superalloys are routinely EDM’d. Hole drilling EDM creates thousands of cooling holes in turbine blades—holes that are impossible to drill conventionally due to the material’s hardness and the hole’s angle.
Medical Devices
Surgical instruments, orthopedic implants, and dental components often require biocompatible materials with complex, customized geometries. Wire EDM is used for precise cutting without burrs, reducing the need for secondary finishing.
Automotive
High-performance engines, transmission components, and fuel injection systems rely on EDM for nozzles, valve seats, and other precision parts.
Lead frames, connector pins, and micro-components are produced using high-precision wire EDM and micro-EDM technologies.
Prototyping and Small Batch Production
For small quantities of complex parts made from difficult materials, EDM can be more cost-effective than developing complex multi-axis milling programs or specialized tooling.
Advances in EDM Technology
Intelligent Power Generators:
Today’s generators use adaptive control algorithms that monitor the spark gap in real time, automatically adjusting parameters to maximize removal rate while preventing wire breakage or poor surface integrity.
Micro-EDM:
Specialized machines and processes allow machining of features as small as 5–10 µm, enabling micro-molds, micro-gears, and miniaturized medical devices.
Automated Electrode Changing:
Sinker EDM machines now feature tool changers and automatic electrode measurement systems, allowing unattended machining of complex cavities using multiple electrodes.
Green EDM:
Research into water-based dielectrics and biodegradable oils aims to reduce the environmental impact of EDM, particularly for sinker machines that traditionally use hydrocarbon oils.
Hybrid Processes:
Combining EDM with conventional machining (e.g., milling-EDM hybrid machines) allows operators to rough with conventional tools and finish with EDM in a single setup, improving accuracy and throughput.

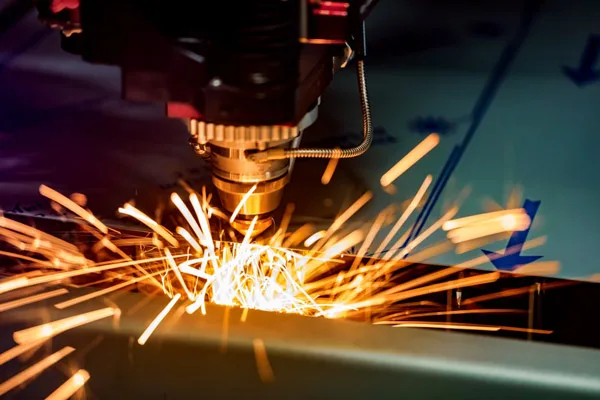

CNC laser machine
Practical Considerations: Choosing EDM for Your Project
Geometry: Can the feature be made with conventional machining? If it requires sharp internal corners, high aspect ratio holes, or is in a hardened material, EDM is likely the answer.
Material: Confirm the workpiece is electrically conductive. While most metals are, be sure to verify that coatings or surface layers will not interfere.
Quantity: EDM is well-suited for small to medium production runs and tooling. For very high volumes, consider if the geometry can be cast or molded instead.
Tolerances and Finish: EDM can achieve extremely tight tolerances, but it requires careful parameter selection. For mirror finishes, expect longer cycle times.
Cost Structure: For sinker EDM, the cost of electrode fabrication must be factored in. For wire EDM, the cost of wire, filters, and dielectric maintenance adds to operational expense.
Lead Time: EDM is generally not a rapid prototyping process—it is a precision process. Lead times can range from days for simple wire-cut jobs to weeks for complex sinker work with custom electrodes.
Conclusion
Electric Discharge Machining stands as one of the most versatile and precise manufacturing technologies available. Its ability to shape the hardest metals, produce intricate details and maintain micron-level accuracy makes it a critical tool for industries that demand perfection. Whether it’s the cooling holes in a jet engine turbine blade, the complex cavity of an injection mold, or a delicate medical implant, EDM delivers results that no conventional cutting tool can replicate.
Yet, EDM is not a substitute for all machining. Its relatively slow material removal rate, the need for conductive materials, and the overhead of electrodes and dielectrics mean that it is best deployed strategically – as a finishing process, as a solution to otherwise unachievable geometries, or as a method to preserve the properties of heat-treated materials.
As manufacturing continues to evolve towards greater precision and more exotic materials, EDM will remain an essential process.
