CNC machining has revolutionized the manufacturing landscape across numerous industries, with the automotive sector standing out as one of its most significant beneficiaries. By enabling highly accurate, efficient and repeatable production processes, CNC machining has become an integral component of automotive manufacturing. Its ability to produce complex components with tight tolerances, reduce lead times and enhance overall quality makes it a critical technology in the development and production of modern vehicles.
Historical Context and Evolution
The evolution of CNC machining in the automotive industry dates back to the mid-20th century, when demand for precision and efficiency surged due to increasing vehicle complexity and safety requirements.
5 axis cnc machining
Diverse Applications of CNC Machining in Automotive Manufacturing
Engine Components
One of the most critical areas where CNC machining plays a key role is engine manufacturing.
Transmission and Drivetrain Parts
The complex components of the transmission system, including gears, axles and housing, benefit significantly from CNC machining. Precise gear cutting and shaping ensure smooth gear engagement and durability in high-stress conditions. CNC machining allows for the production of lightweight yet robust transmission components that contribute to overall vehicle efficiency and performance.
Chassis and Structural Components
CNC machining is employed to produce lightweight yet strong chassis components, brackets, and mounting plates. The ability to create complex geometries allows automotive engineers to optimize structural integrity while reducing weight, which is essential for improving fuel efficiency and handling.
Interior and Exterior Parts
Beyond mechanical components, CNC machining is also utilized for interior and exterior vehicle parts such as dashboards, door handles, and trim pieces. High-precision CNC machining ensures aesthetic quality and consistency across production batches, meeting both functional and design standards.

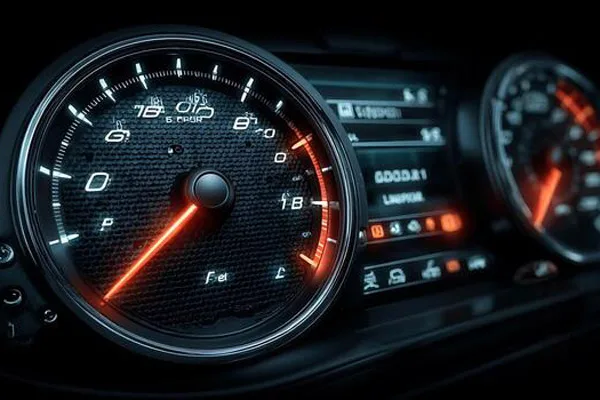

instrument panel
Prototyping and Customization
CNC machining significantly accelerates prototyping processes, allowing automakers to test and refine new designs rapidly. Its flexibility also enables limited-run custom parts, which are vital for specialized vehicles, racing applications, or concept models.
Advantages of CNC Machining for Automotive Applications
CNC machining offers numerous advantages that make it particularly well-suited for the demanding requirements of automotive manufacturing. These benefits not only enhance the quality and performance of automotive components but also contribute to overall production efficiency and cost-effectiveness. Here are some of the key advantages:
Exceptional Precision and Accuracy
CNC machines are capable of producing parts with extremely tight tolerances, often within micrometers. This level of precision ensures that components fit perfectly, operate smoothly, and meet strict safety and quality standards essential for automotive applications.
Ability to Machine Complex Geometries
Automotive parts often feature intricate designs and complex geometries that are difficult or impossible to achieve with traditional manufacturing methods. CNC technology allows for the creation of detailed and complex shapes, including internal channels, contours, and multi-axis features, enabling innovative and optimized designs.
High Repeatability and Consistency
Once programmed, CNC machines can reproduce the same part repeatedly with minimal variation. This consistency is critical for mass production, ensuring each vehicle component meets the same high standards and reducing the risk of defects.
Reduced Lead Times
The automation and precision of CNC machining significantly cut down manufacturing time from design to finished product. Rapid prototyping and rapid tooling changes allow automakers to bring new models to market faster and respond quickly to design changes.
Material Versatility
CNC machining can process a wide array of materials, including metals such as aluminum, steel, titanium and plastics.
Improved Surface Finish and Quality
CNC machining produces smooth surface finishes that often require minimal additional finishing processes. Quality finishes are particularly important for aesthetic parts and components where surface integrity affects performance.
Cost-Effectiveness for Large and Small Batches
While initial setup costs can be high, CNC machining becomes highly cost-effective for both large-scale production runs and small-batch or custom manufacturing. Its flexibility makes it ideal for prototype development, limited editions, and specialized vehicle components.
Enhanced Safety and Reduced Waste
Precision machining reduces material wastage, reducing material costs and environmental impact. Automated processes also minimize human error, increase safety for workers, and ensure consistent quality.
Types of CNC Machines Used in Automotive Manufacturing
In automotive manufacturing, various CNC machines are employed to produce a wide range of components with high precision and efficiency. Each type of CNC machine is specialized for specific tasks, materials, and part geometries. Here are the most common types used in the industry:
- CNC Milling Machines: Function: Remove material from a workpiece using rotating cutters on multiple axes. Uses: Producing engine blocks, transmission housings, brackets, and complex structural parts. Features: Multi-axis (3, 4, or 5 axes) milling allows for intricate geometries and precise features.
- CNC Turning : Function: Rotate the workpiece against a stationary cutting tool to shape cylindrical parts. Uses: Manufacturing shafts, pistons, valves, and other round components. Features: Ideal for producing symmetrical parts with high accuracy.
- CNC Drilling and Tapping Machines: Function: Precisely drill holes and create threads in components. Uses: Preparing parts with mounting holes, fastener threads, or cooling channels.
- CNC Grinding Machines: Function: Achieve fine surface finishes and tight tolerances by removing small amounts of material. Uses: Finishing engine valves, precision shafts, and other critical parts requiring smooth surfaces.
- CNC Wire Cutting and EDM Machines: Function: Use electrical discharge to cut hard metals and complex shapes that are difficult to machine traditionally. Uses: Producing molds, dies, and intricate internal features in engine parts.
- Multi-Axis Machining Centers: Function: Combine multiple axes (up to 5 or more) to perform complex, multi-sided machining in a single setup. Uses: Manufacturing highly complex parts like turbine blades or engine components with intricate geometries.
- CNC Laser and Plasma Cutters: Function: Use laser or plasma heat sources to cut through metals quickly and accurately. Uses: Cutting large metal sheets for chassis, body panels, or frame components.
Both 3D printing and CNC machining are vital manufacturing technologies in the automotive sector, but they serve different purposes and have distinct advantages.

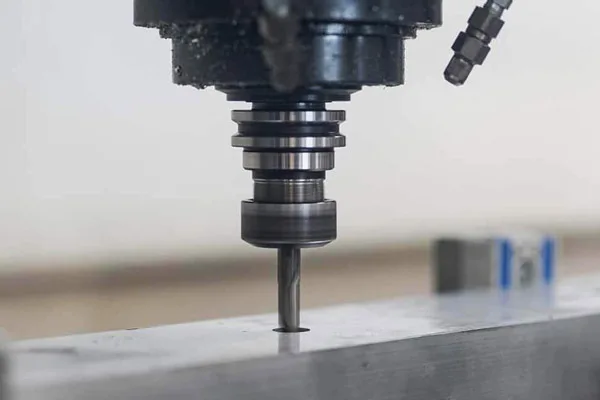

CNC drilling
Comparing 3D Printing and CNC Machining for Automotive Manufacturing
3D Printing builds parts layer-by-layer from digital models. It’s ideal for rapid prototyping, complex geometries, and small-batch or custom parts. It offers quick turnaround times, design flexibility, and less material waste but generally produces parts with lower strength and surface finish compared to CNC.
CNC Machining involves removing material from solid blocks to create precise, durable parts. It’s best suited for high-volume production of high-strength, performance-critical components with tight tolerances and superior surface quality. CNC is typically faster and more cost-effective for large runs of simple to complex metal and plastic parts.
In summary:
- Use 3D printing for rapid prototypes, complex internal structures, and custom or low-volume parts.
- Use CNC machining for high-precision, durable components, especially in high-volume manufacturing.
Nicerapid CNC Machining Services
Need automotive parts fast? At Nicerapid, you get precision CNC machining across three, four, and five axes. Choose from a wide range of materials – aluminum alloys, steel, titanium, plastics, and more – and rely on our extensive manufacturing network to ship your components in as little as three days.
Conclusion
CNC machining has firmly established itself as the cornerstone of modern automotive manufacturing.
